COMPUTERIZED KEY CUTTING FOR WORKING LOCKSMITHS

Precision that goes where the work goes.

Cut, decode and duplicate supported automotive, residential, commercial and specialty key types with app-based control, interchangeable jaws and flexible power options.

See What It Cuts Where to Buy

S1 4-WAY JAW INCLUDED · BLUETOOTH APP CONTROL · LAS VEGAS SUPPORT & SERVICE

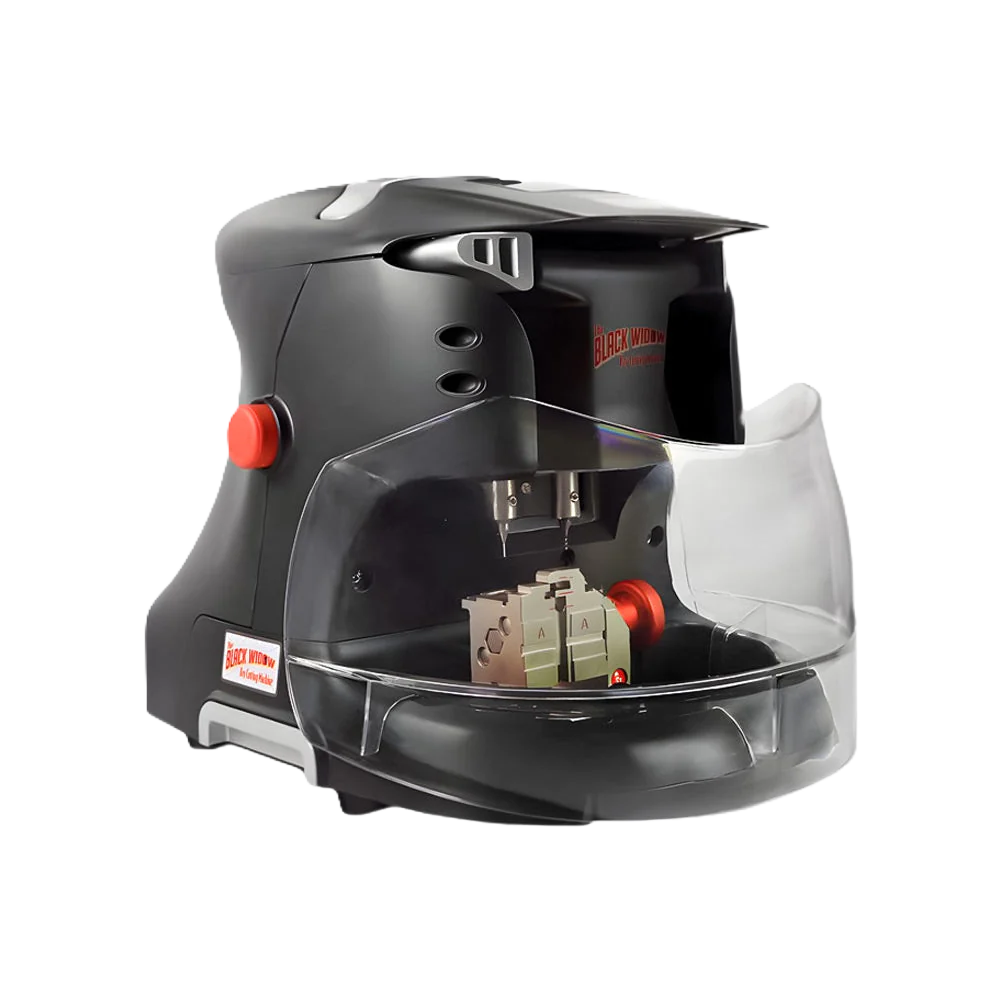

Black Widow computerized key cutting machine — black housing with red controls, clear protective shield and S1 four-way jaw
SCROLL

EQUIPMENT FACTS

  • 12,000RPMBRUSHLESS MOTOR — NO MOTOR BRUSHES TO REPLACE
  • 32.9LBCOMPACT 10.5″W × 14″D × 12″H FOOTPRINT
  • 110V / 12V+ EXTERNAL BATTERYBENCH · VEHICLE · REMOTE POWER OPTIONS
  • iOS + ANDROIDBLUETOOTH APP CONTROL — YOUR DEVICE OR A TABLET
  • 2-YEARWARRANTYLAS VEGAS SUPPORT, SERVICE & REPAIR

NEW TO COMPUTERIZED KEY CUTTING? UNDERSTAND THE SETUP IN 60 SECONDS

The jaw holds it. The decoder reads it. The cutter makes it.

01

HOLD.

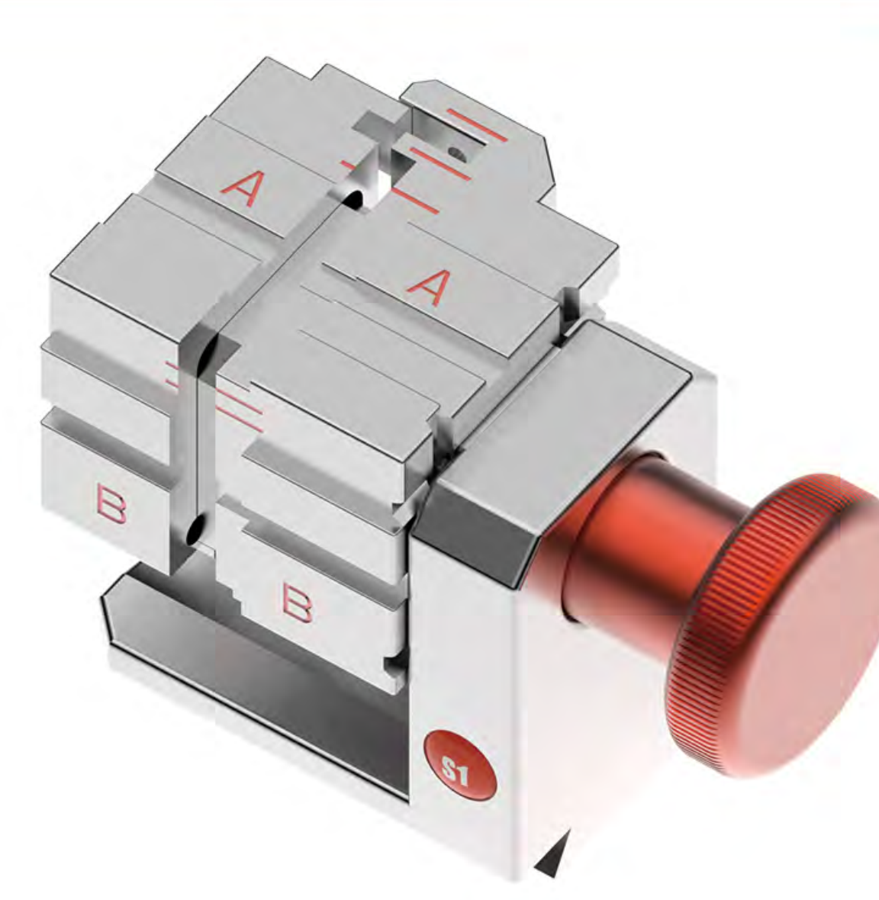

S1 four-way jaw — the fixture that holds the key

THE JAW

The fixture that securely holds and positions the key.

02

READ.

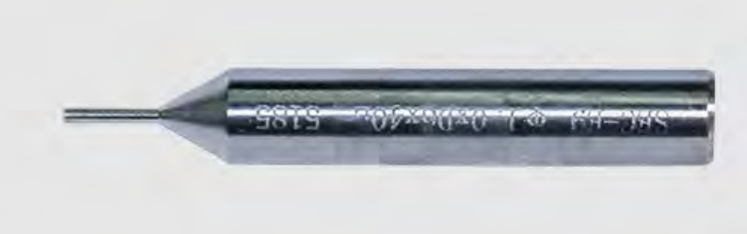

Standard decoder probe — the measuring tool

THE DECODER — MEASURES, NEVER CUTS

The measuring probe used when the machine needs to read an existing compatible key.

03

CUT.

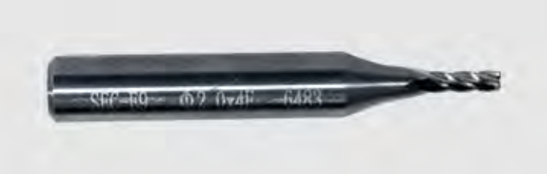

2.0 mm standard cutter — the cutting tool

THE CUTTER

The cutting tool that removes material to create the new key.

CAPABILITY SELECTOR

What do you cut?

Select the work — see the typical setup, what's included, and what additional tooling may be required.

S1 · TRJ1 S1 four-way jaw — official Black Widow render

TYPICAL SETUP

S1 — 4-Way Automotive Jaw

INCLUDED WITH BLACK WIDOW
WHAT IT DOES
WHY YOU NEED IT
TYPICAL TOOLING

PACKAGE AVAILABILITY

Compare Packages

GROW INTO IT

One machine. The capability your work calls for.

Start with Black Widow's included S1 automotive setup. Add the jaws and tooling that match the services your business takes on — from conventional edge-cut work to supported tubular, Tibbe and dimple applications.

Explore Capabilities & Tooling

POWER WHERE THE JOB IS

Bench. Vehicle. External battery.

From the shop bench to the service vehicle — choose the power source that fits the job.

BENCH110V

Included 110V power setup — wall adapter in the box. Set it on the bench and cut.

VEHICLE12V

Optional 12 V vehicle power — run the machine from the service vehicle, right where the job is.

AWAY FROM AN OUTLETEXTERNAL BATTERY

Work away from an outlet using an optional external battery setup.

CHOOSE THE POWER SOURCE THAT FITS THE JOB.

Battery operation uses an external battery; Black Widow does not contain an internal battery.

BUILT FOR A WORKING BENCH. OR VAN.

The unglamorous details that matter every day.

KEEP THE MESS CONTAINEDSHIELD & TRAY

The protective shield guides shavings toward the removable chip tray — brass stays off your bench and out of the van.

KEEP TOOLING TOGETHERON-BOARD STORAGE

Integrated storage keeps cutters, decoders and small accessories with the machine.

FIT THE WAY YOU WORKCOMPACT FOOTPRINT

10.5″W × 14″D × 12″H with bench and vehicle power options — it fits the space you actually have.

CONTROL IN YOUR HAND

Control Black Widow from your screen.

Use a compatible Android or iOS phone or tablet to find the key, choose the workflow, confirm the required setup and send the cut to Black Widow.

USE YOUR OWN COMPATIBLE DEVICE OR CHOOSE DELUXE WITH A DEDICATED TABLET SETUP

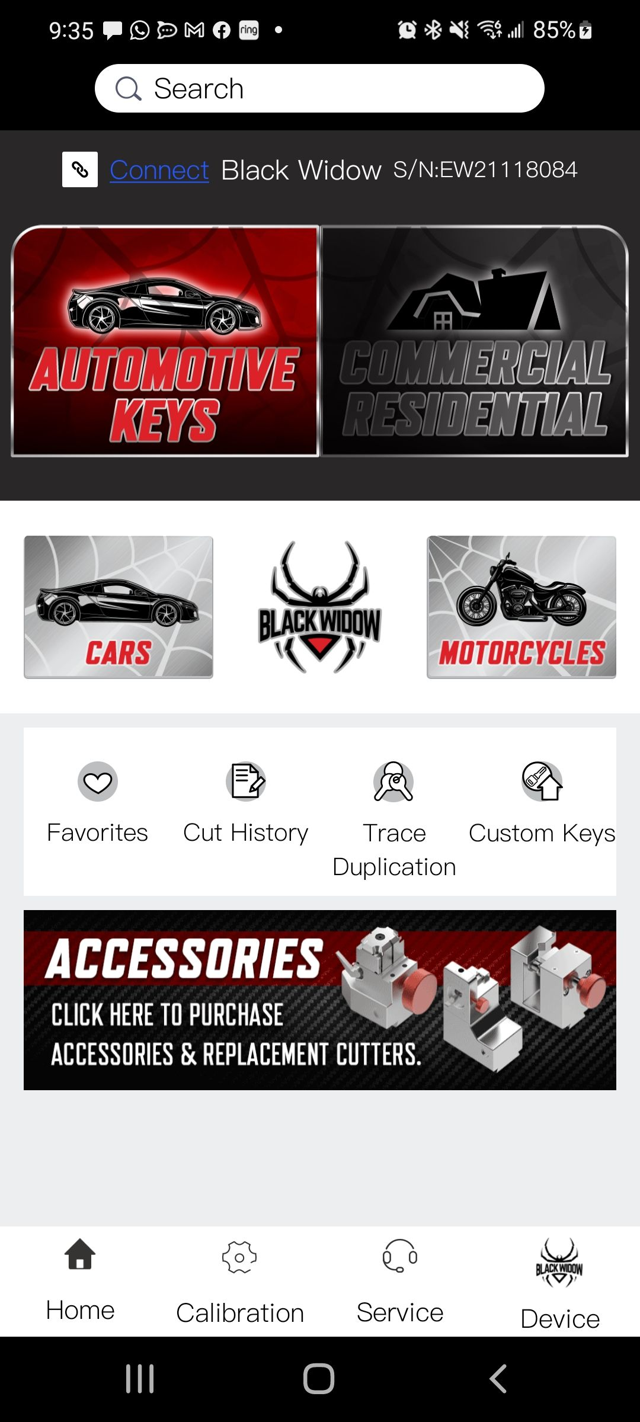

Black Widow V2 app home screen — Automotive and Commercial/Residential key categories, Favorites, Cut History, Trace Duplication, Custom Keys
FINDSearch by vehicle or category — favorites and cut history one tap away.

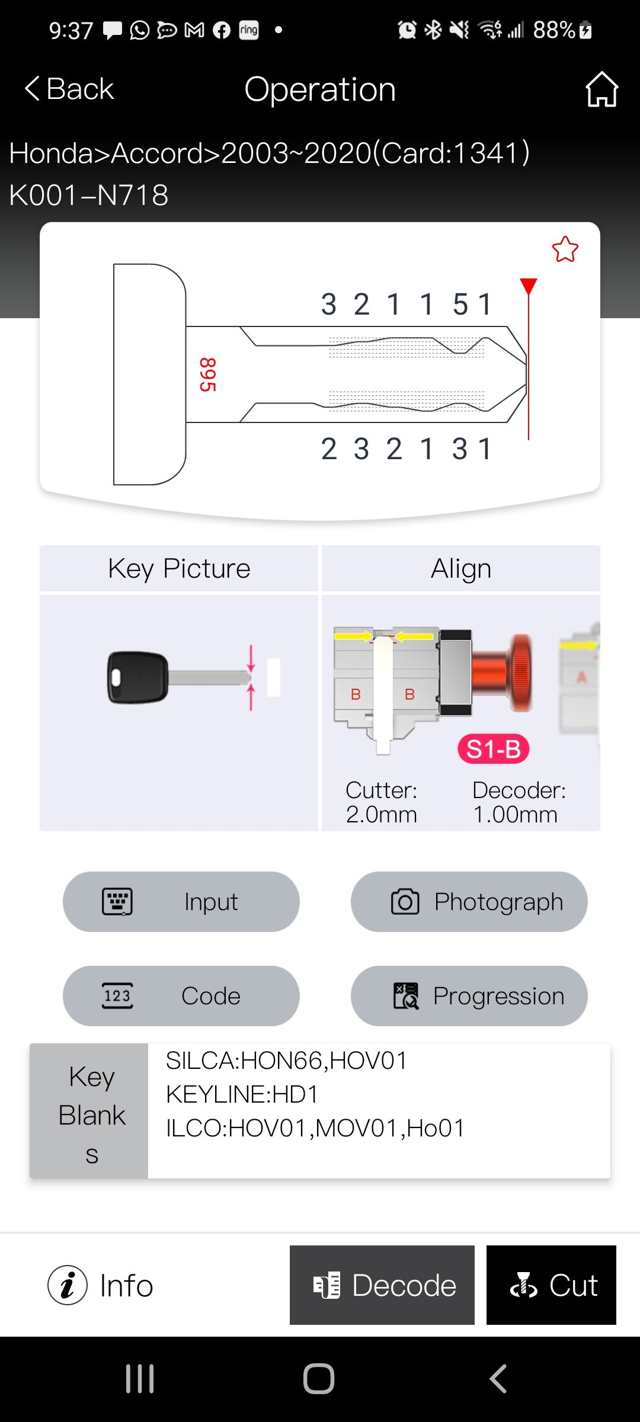

Black Widow V2 app operation screen — Honda Accord key profile with bitting diagram, input, photograph, code and progression options
DECODE / CODE / DUPLICATEThe app shows the profile, blank cross-references and every path to the cuts.

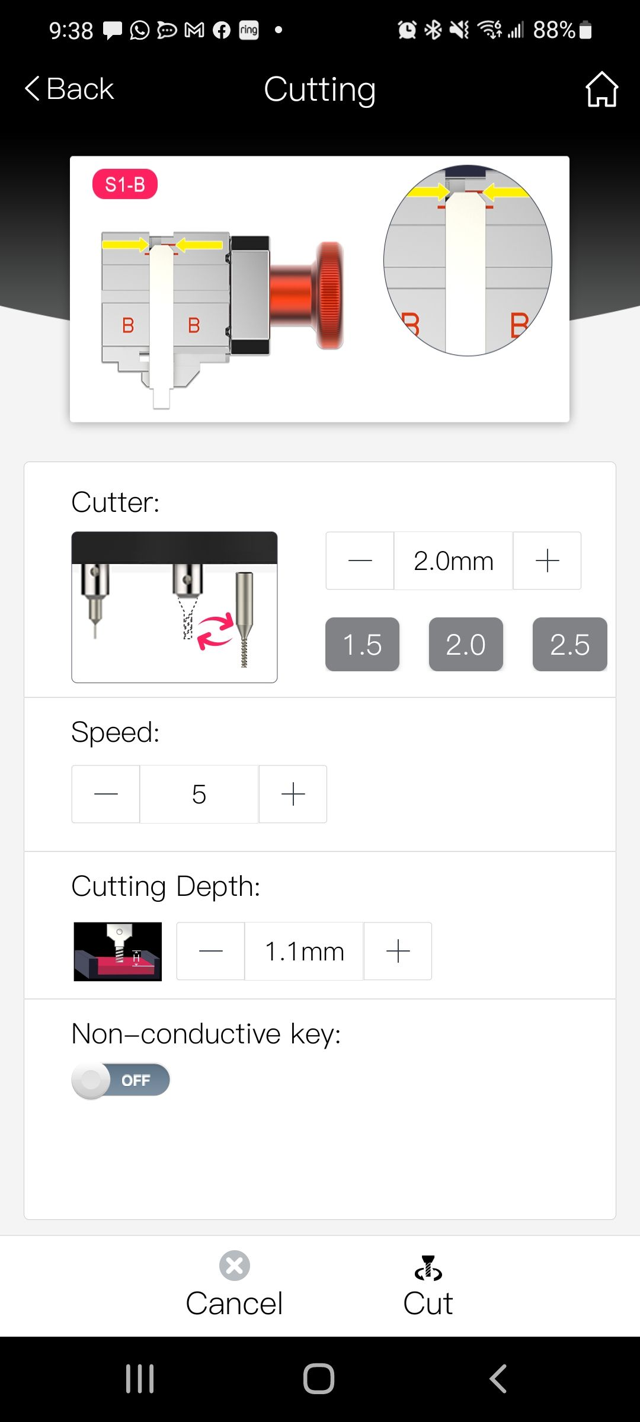

Black Widow V2 app cutting screen — jaw face alignment, cutter size, speed and cutting depth settings
CONFIRM & CUTThe app shows the required jaw face and tooling for the selected supported profile, then guides the cutting setup.

FIND→DECODE / CODE / DUPLICATE→CONFIGURE→CUT→HISTORY & FAVORITES

REPEAT CUSTOMERSFAVORITES & CUT HISTORY

Save the key types you use most, and look back at previous cuts when a customer comes back.

UNKNOWN KEY NAME?TRACE DUPLICATION

For supported key types, tell Black Widow the general type and trace the existing key.

PARTIAL CUTS?PROGRESSION

Enter the cuts you know and Progression can show possible combinations for the missing ones. Internet required.

Many core cutting functions can be used without an Internet connection. Key-code lookup and progression features require connectivity. Decode by Photo is visual, locksmith-assisted decoding on your device. Every workflow, explained →

FREE SOFTWARE AND DATABASE UPDATES — NO SUBSCRIPTION REQUIRED FOR CURRENT UPDATES

WHICH APP? CHECK YOUR SERIAL.

Two generations. One quick check.

Advanced / direct Android install: V2 APK download — the store links above are the standard path. Downloading or installing the app constitutes agreement to the Software License Terms; see also the App Privacy Policy.

TWO WAYS TO BUY

Essentials or Deluxe.

Choose the package that matches the work you do.

BLACK WIDOW

Essentials Package

Best for: starting with Black Widow's core automotive capability, using your own compatible phone or tablet.

  • Black Widow key cutting machine
  • S1 four-way jaw
  • 2× standard decoders
  • 2.0 mm standard cutter
  • 1.5 mm cutter
  • 110V power supply & cable
  • Mounting thumb screw & Allen tools
  • Calibration adapter
  • Shoulder-stop block
  • Cleaning brush

Calibration adapter: a known reference so the machine can establish correct jaw/tool position. Shoulder-stop block: positions shoulder-referenced keys at the correct starting location.

BLACK WIDOW · ADDS S2 + TURNKEY CONTROL

Deluxe Bundle

Best for: adding residential/commercial edge-cut capability with the S2 jaw, commercial software and a dedicated tablet setup.

Everything in Essentials, plus:

  • S2 single-sided / commercial & automotive jaw
  • Commercial key-cutting software
  • Android tablet
  • Tablet stand
  • Bench mounting kit
Where to Buy

See a dealer for current pricing and availability. Full package details →

OWNERSHIP

2-YEAR WARRANTY. LAS VEGAS SUPPORT & SERVICE.

2-YEAR MANUFACTURER WARRANTY

TECHNICAL SUPPORT (888) 816-1046

SERVICE & REPAIR — LAS VEGAS, NEVADA

DEVELOPED, SUPPORTED AND SERVICED BY LOCK LABS IN THE U.S.

Call before you ship — contact technical support first; some issues may be resolved without shipping the machine.

Support & Service Warranty User Manual (PDF)

DEALER NETWORK

Where to buy.

Find Black Widow from our dealer network — across the United States and Canada.
